Designs and configurations
Guide Post & Bushing Sets
Posts and bushings specified as a mating set simplify fit coordination. Sliding and rolling systems use different clearances and assembly requirements.
Designs and configurations ↓Material options
Bearing steel · Bronze
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.
Plain guide set
Post and plain bushing are matched to mounting bores and lubrication.
Send inquiry now →

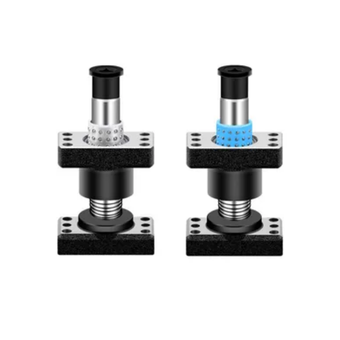

Custom guide assembly
Coordinate mounting datums and component heights with the mold layout.
Send inquiry now →Materials and treatment options

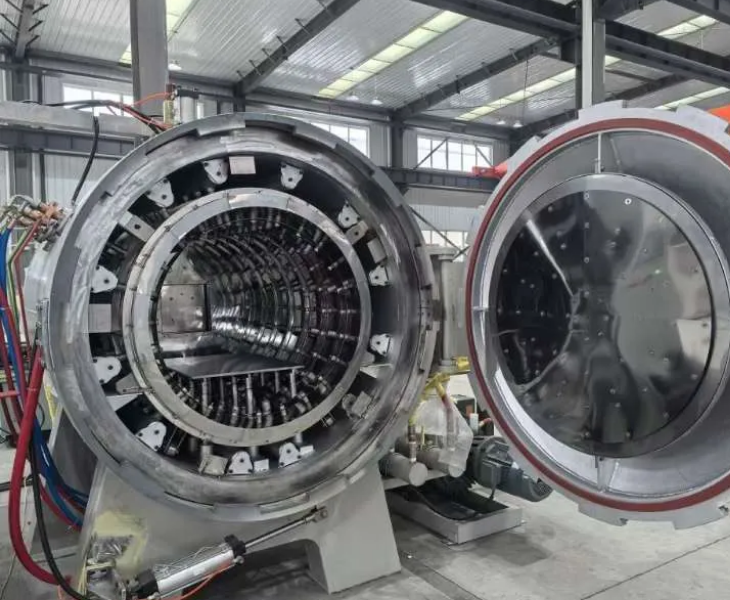

Set hardness and wear depend on material and heat treatment—vacuum processing targets about HRC 58–62 with minimal decarburization and distortion; optional cryogenic treatment improves stability and life.
Send inquiry now →
Precision machining and surface finish
Posts and bores are centerless- and internal-ground for concentricity ≤0.005 mm and Ra ≤0.2 μm-class finishes—smoother motion and less galling risk.
Send inquiry now →
Family-specific questions
What to specify for guide sets?
Provide hole spacing, closed height, travel, series (plain/ball) and lubrication/preload as a set.
