Straight Ejector Pins
SKD61 · H13 · SKH51
Standard straight ejector pin · Imperial straight ejector pin · Metric straight ejector pin …
View component · 4 optionsPRODUCT FAMILY
Ejector Components
Pins, blades, sleeves and air valves for releasing molded parts. Match the contact shape and support length to the part and mold layout.
Explore product families ↓ Explore configurations by family ↓What to specify
- Mold temperature and resin
- tip dimensions and unsupported length
- fit, stroke and quantity
Explore product families
7 families

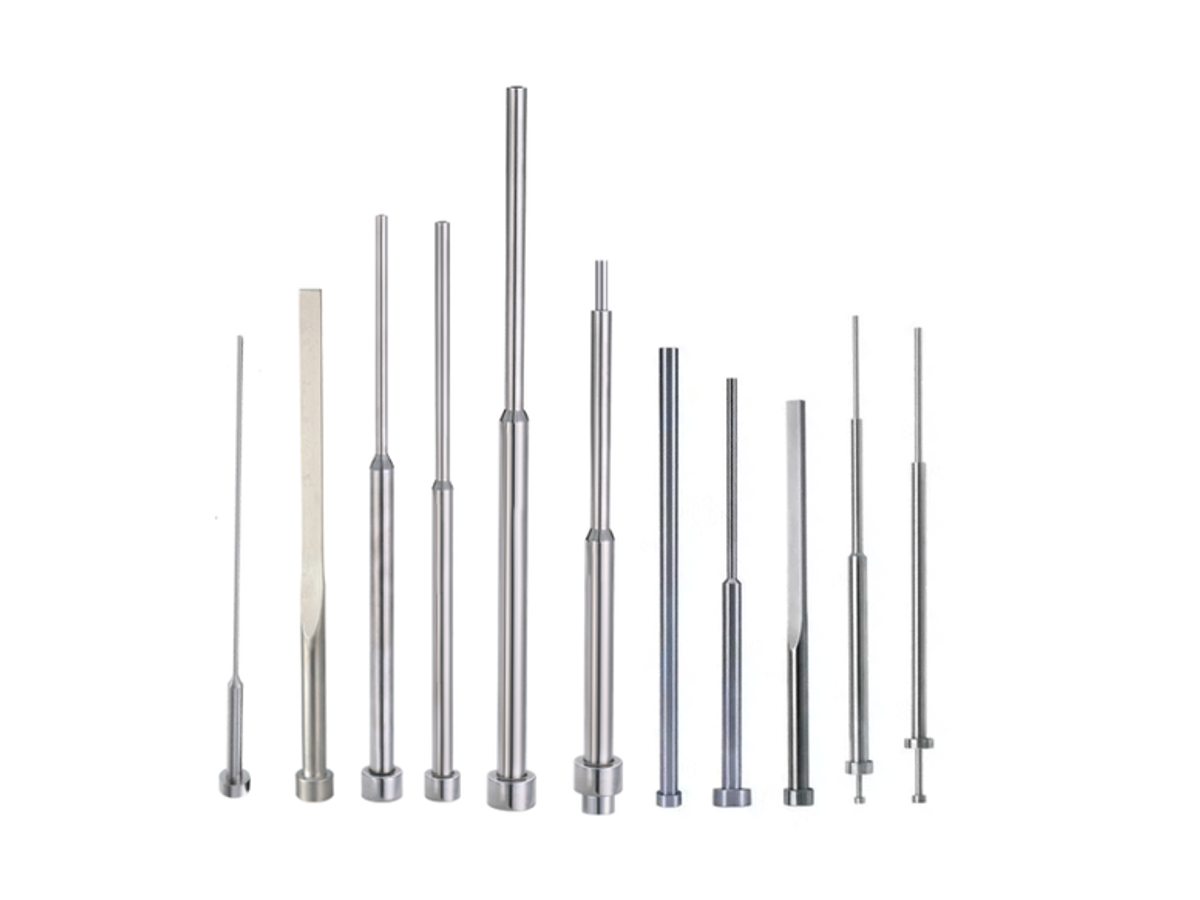

Shoulder Ejector Pins
SKD61 · H13 · SKH51
Locating shoulder · Custom head and orientation · Nitrided sliding section
View component · 3 options

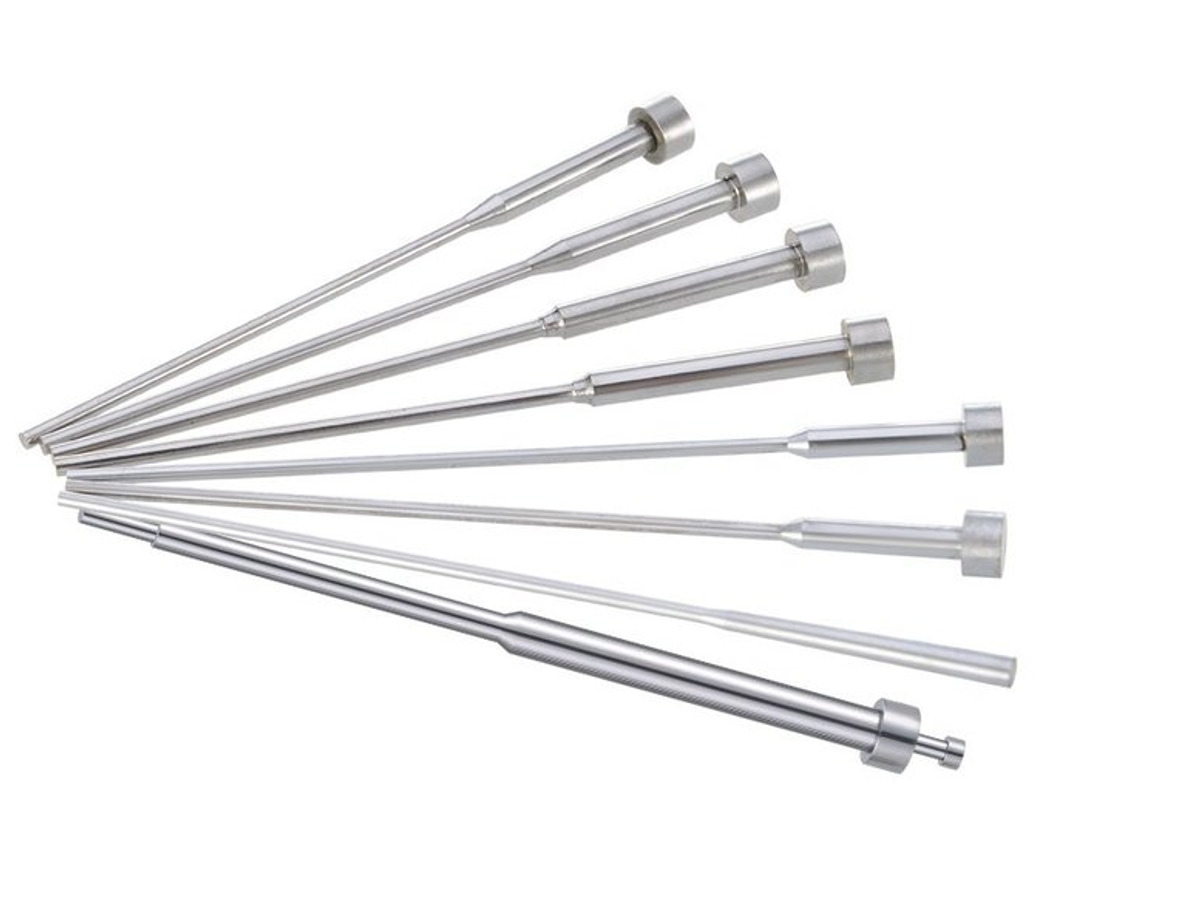

Stepped Ejector Pins
SKD61 · H13 · SKH51
Single-step ejector · Multi-step ejector · Shaped ends and nitriding
View component · 3 options

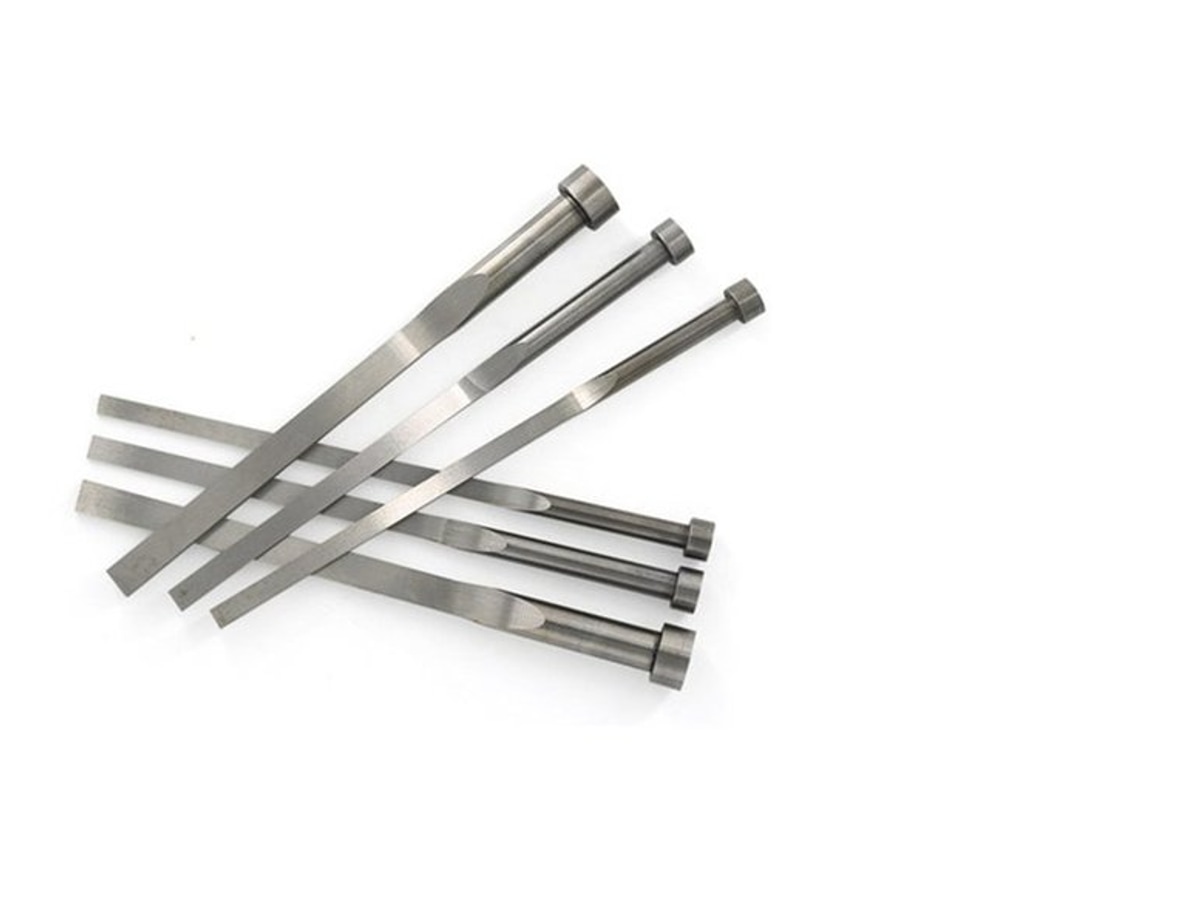

Blade Ejector Pins
SKH51 · SKD61
Standard solutions · Custom solutions · Material options
View component · 3 options

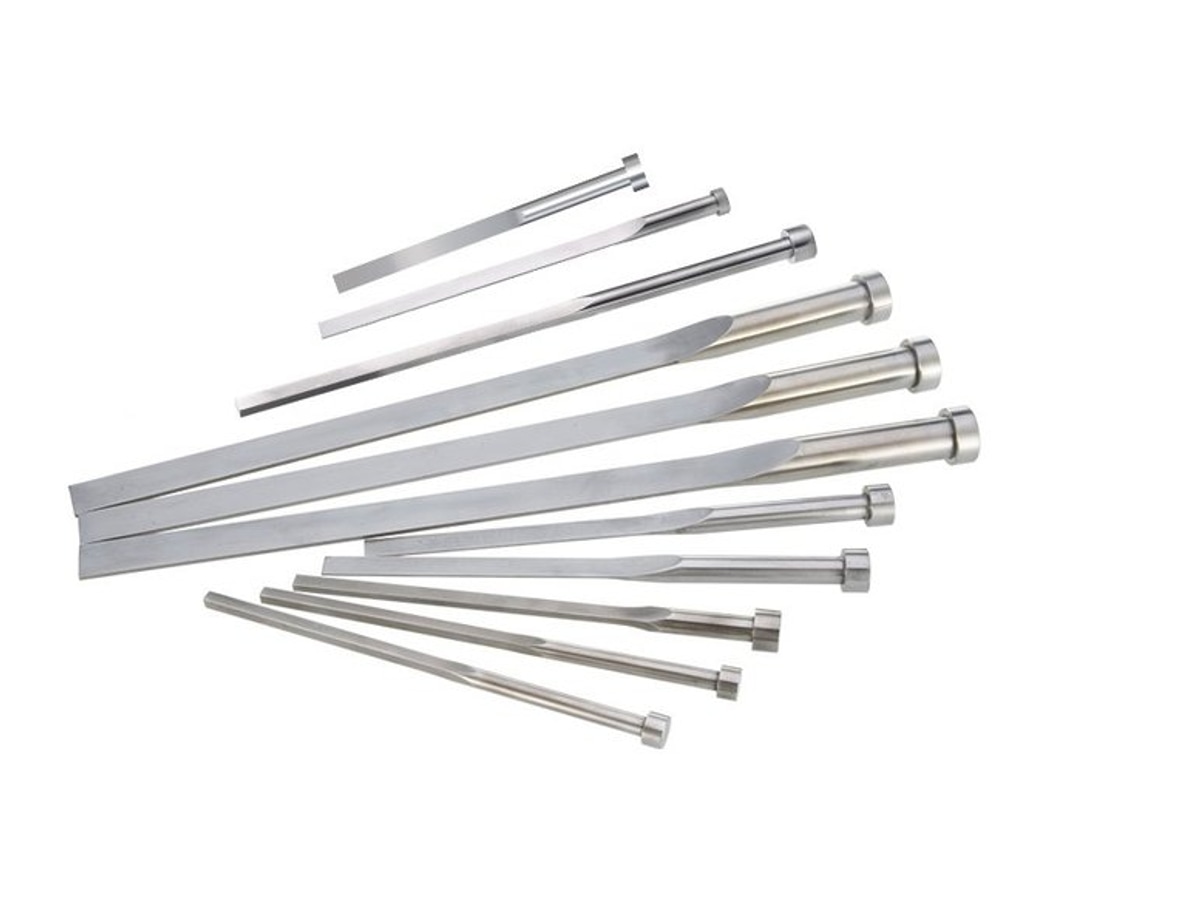

Square Ejector Pins
SKD61 · Stainless steel
Standard square ejector pins · Custom square ejector pins · Material options
View component · 3 options

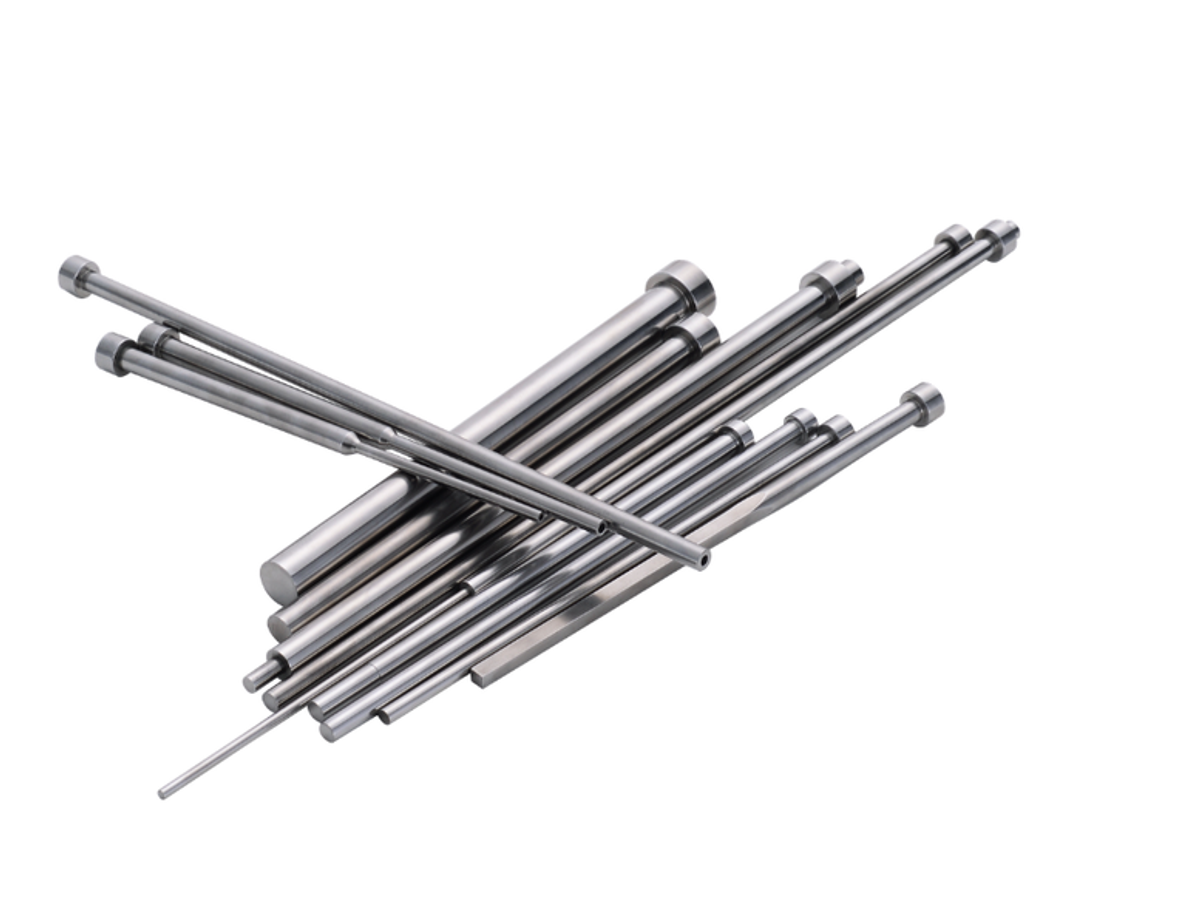

Ejector Sleeves
SKD61 · SKH51
Thin-wall and miniature sleeves · Long sleeves · Stepped and custom sleeves …
View component · 5 options

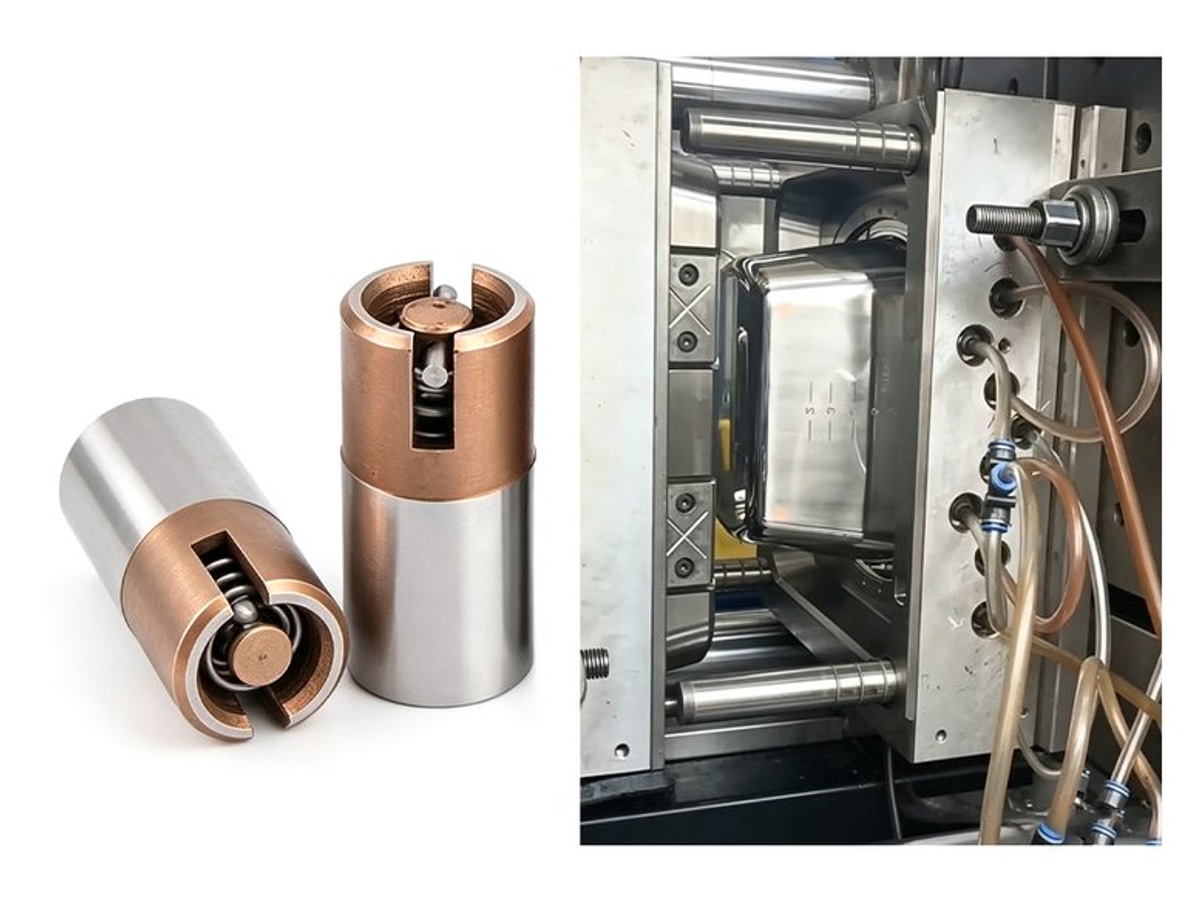

Air Poppet Valves
Stainless steel
Spring-return air poppet · Custom mounting and air interface
View component · 2 optionsExplore configurations by family
Straight Ejector Pins ↗
Round pins transfer ejector-plate movement to the molded part. SKD61 and nitrided configurations are options within this family, not different functions.
Shoulder Ejector Pins ↗
An enlarged shoulder provides a defined mounting or guiding interface. Shoulder position and mating geometry must match the ejector assembly.
Stepped Ejector Pins ↗
A reduced ejection tip joins a larger support shaft. Step dimensions are selected to suit the available contact area and mold support.
Blade Ejector Pins ↗
A thin rectangular working end reaches narrow ribs and restricted ejection areas. Blade orientation and the transition to the shank require close attention.
Square Ejector Pins ↗
A square working section provides a non-round contact surface. Its orientation must be maintained by the corresponding mold guide geometry.
Ejector Sleeves ↗
A hollow sleeve moves around a core pin to eject a boss or tubular feature. Concentricity and wall thickness are reviewed with the mating core.
Air Poppet Valves ↗
A spring-loaded valve admits air at the mold surface during release to help break a vacuum. It assists demolding without replacing the mechanical ejector design.
