Ball Cages & Retainers
The cage spaces and retains bearing balls between a post and bushing. Brass, aluminum and polymer bodies are alternatives selected for mass, temperature and duty.
Designs and configurations ↓Material options
Brass · Aluminum · Engineering polymer
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

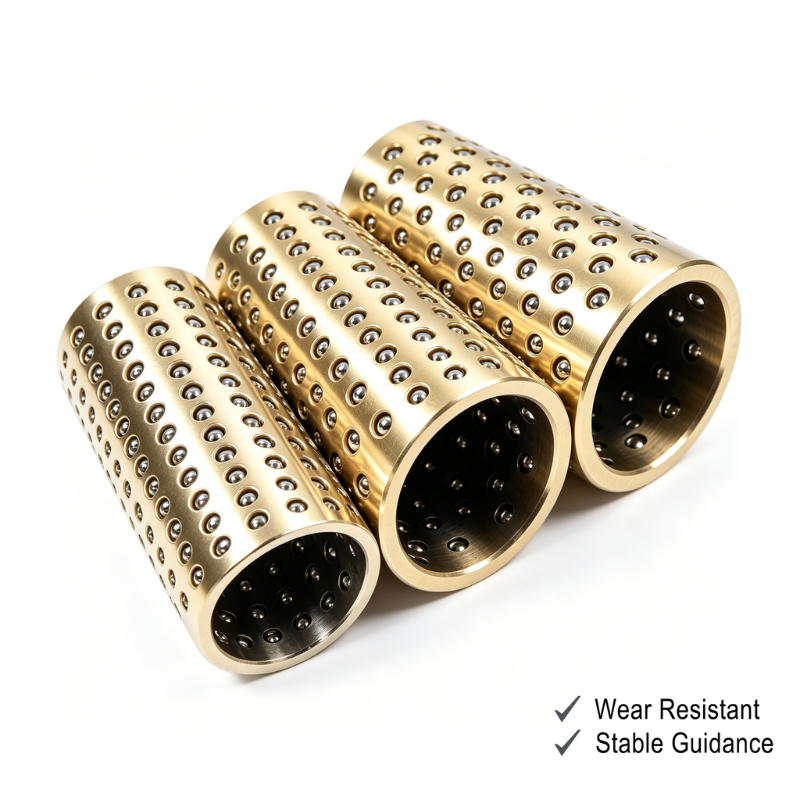

Brass ball cage
A metal cage for repeated guidance, matched to actual temperature and load.
Send inquiry now →

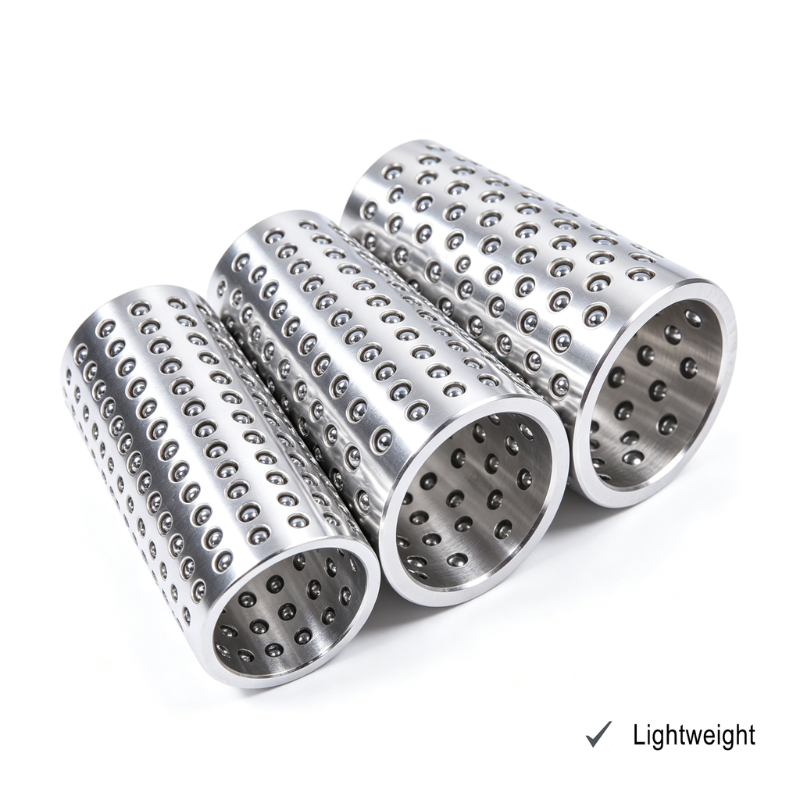

Aluminum ball cage
For designs sensitive to moving mass; weight reduction still requires retention-strength checks.
Send inquiry now →

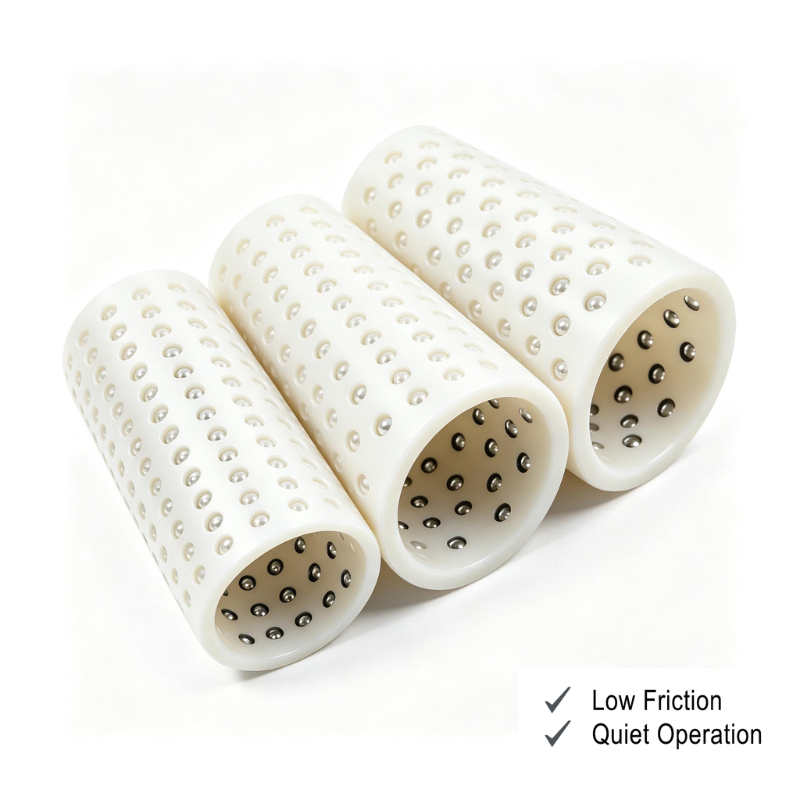

Polymer ball cage
For suitable light-load and temperature conditions; verify resin, lubricant and dimensional stability.

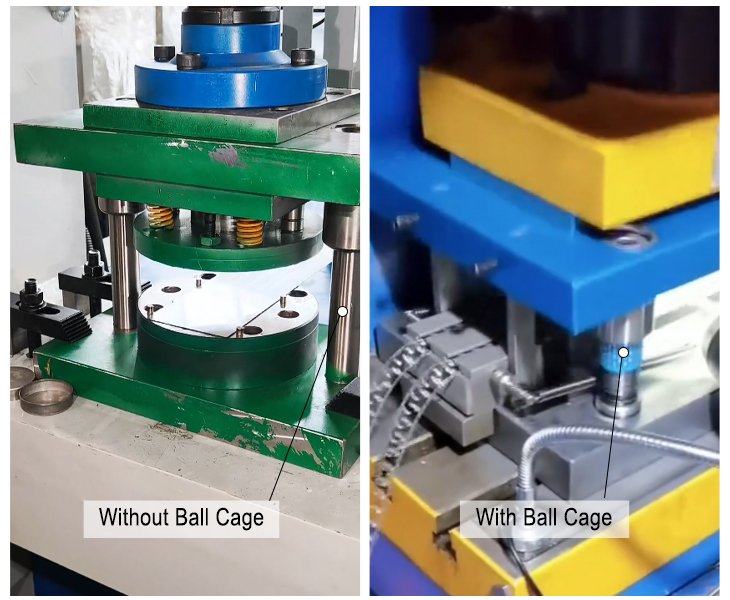

Send inquiry now →Industries and operating scenarios
The cage spaces and retains bearing balls between a post and bushing. Brass, aluminum and polymer bodies are alternatives selected for mass, temperature and duty.
Reciprocating ball-guided dies: compare brass, aluminum and polymers for cage motion, stroke and temperature.
Send inquiry now →

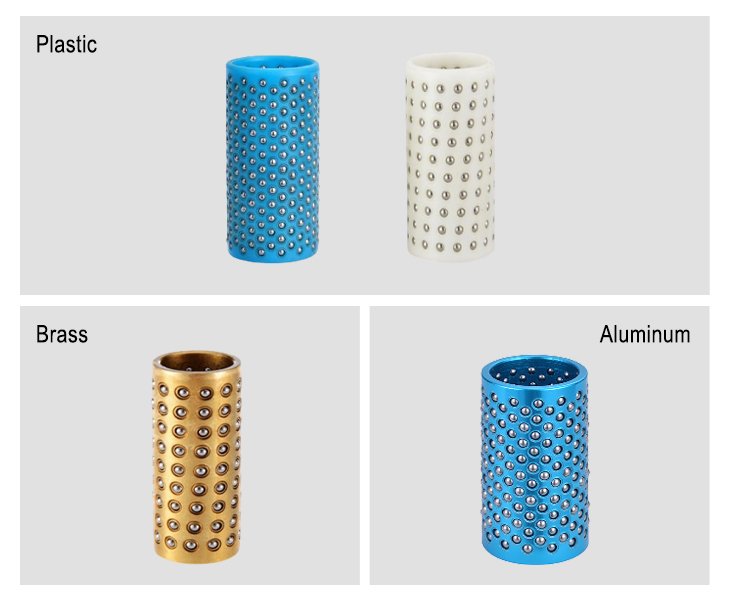

Materials and treatment options
Send inquiry now →
Surface treatments and finishes
-
Pocket deburring and retention checks
Finish pocket edges without changing ball retention or leaving abrasive residue.
-
Material-specific cage finishes
Metal and polymer cages need different processes; nitriding, plating or polishing is not universal.
Family-specific questions
Can a ball cage replace a plain bushing?
No. Cages retain balls between post and ball bushing; they are not plain sliding sleeves.
