Precision Dowel Pins
Bearing steel · Alloy steel · Stainless steel
Precision-ground dowel · Hardened dowel · Custom length and ends
View component · 3 optionsPRODUCT FAMILY
Locating & Feed Pins
Dowel pins locate assemblies; pilot and floating pins control strip position and lift in stamping dies. Choose by function before specifying the fit.
Explore product families ↓ Explore configurations by family ↓What to specify
- Locating or lifting function
- working diameter and length
- mating fit and installation method
Explore configurations by family

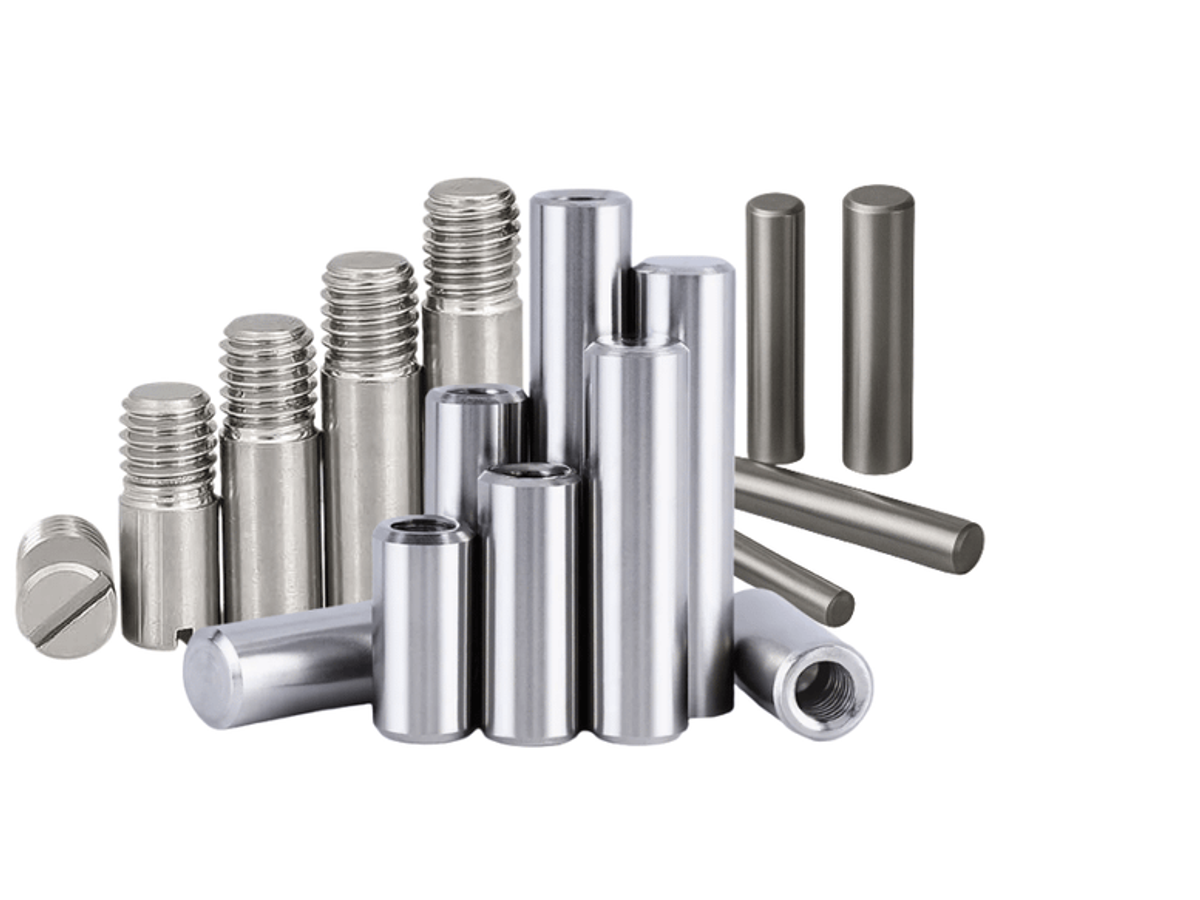

Precision Dowel Pins ↗
Ground cylindrical pins locate mating parts for repeat assembly. Hardened and custom-length versions remain within the same locating-pin family.

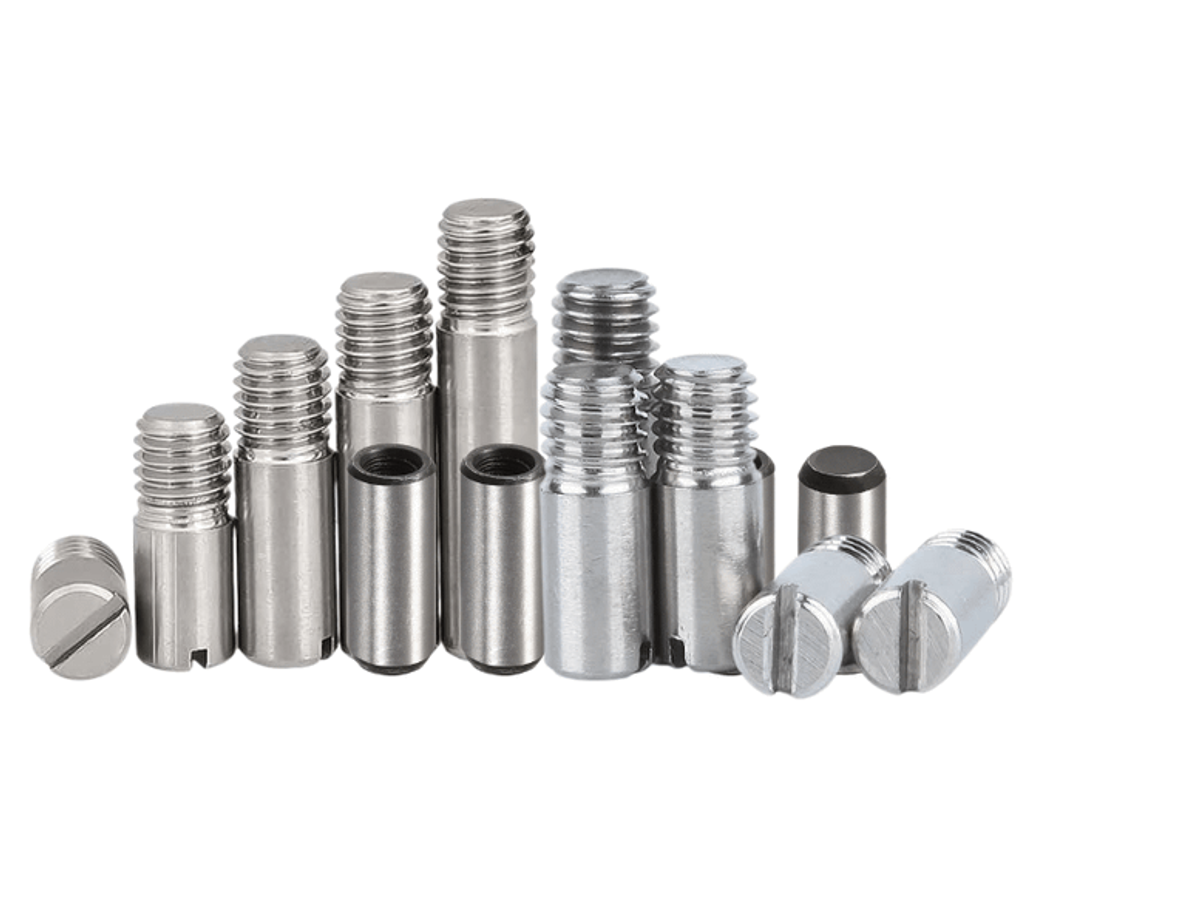

Threaded Dowel Pins ↗
Ground cylindrical locating section plus a thread for install, retention or controlled removal—positioning accuracy comes from the cylinder fit, not the thread.
YZX PRECISION
Send drawing for quote
Share a 2D drawing, 3D model or sample details. We can review the geometry, mating fit and material requirements with you.
