Flanged Bronze Bushings
A bronze sleeve with an integral flange adds an axial locating or thrust face. Radial and axial working conditions should both be specified.
Designs and configurations ↓Material options
Bronze · Copper alloy
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

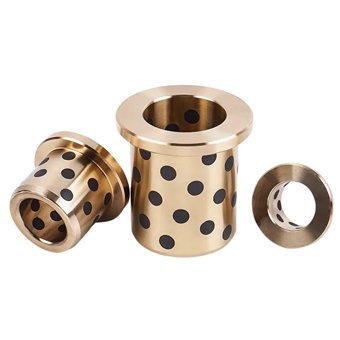

Plain flanged bronze bushing
The flange locates the bushing; sliding faces require a lubrication plan.
Send inquiry now →

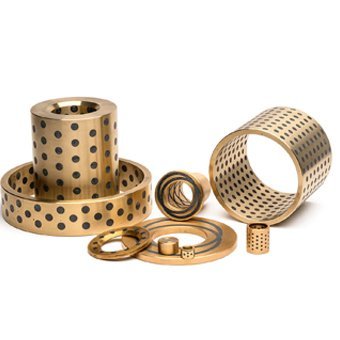

Solid-lubricant flanged bushing
Locate plugs on the bore and thrust face according to actual contact.
Send inquiry now →Industries and operating scenarios
Flanged graphite bronze bushings add a flange for axial location or thrust while the bore guides radially—common on mold slides and plates where both duties must be specified.
Send inquiry now →Typical industries
-

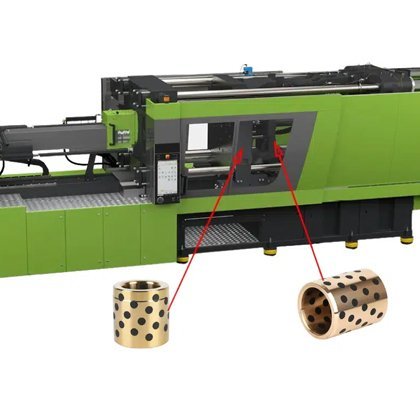

Injection mold systems -

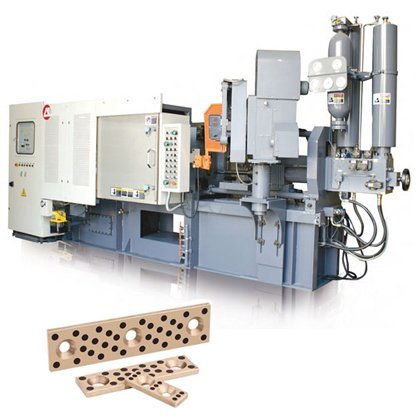

Die-casting molds -
Stamping dies -

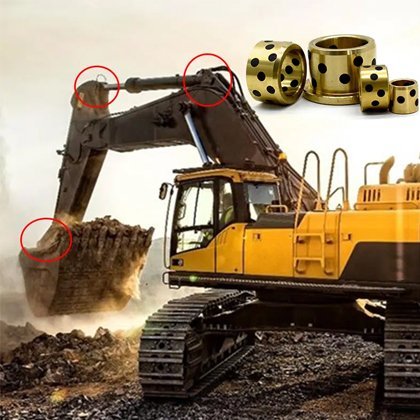

Heavy machinery moving parts -

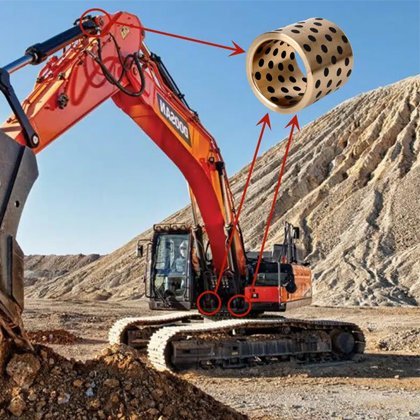

Construction machinery
Materials and treatment options

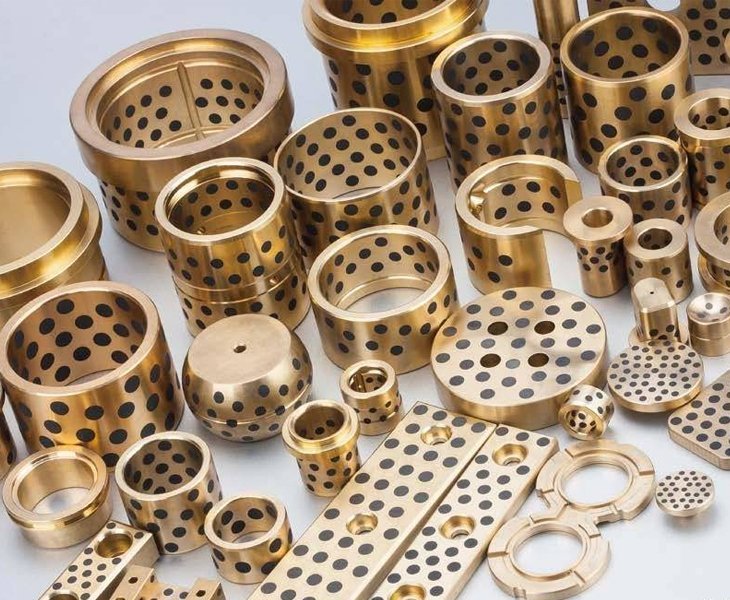

Same alloy options as HTX graphite bronze—brass, aluminum bronze or phosphor bronze with graphite plugs; specify flange OD/thickness for axial duty and mounting.
Send inquiry now →

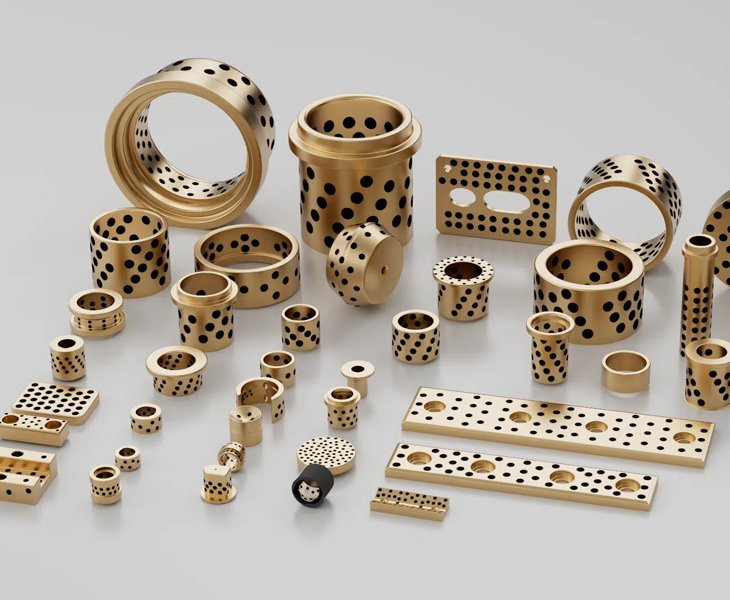

How they work
Graphite releases from the copper body during sliding for self-lubrication; the flange locates axially while the bore handles radial guidance or load.
Send inquiry now →
Family-specific questions
How do flanged bronze bushings handle radial and axial loads?
The bore carries radial duty; the flange may locate or take thrust—specify both and lubricated faces.
