Precision Dowel Pins

Name: Precision Dowel Pins
Brand: YZX Precision

Ground cylindrical pins locate mating parts for repeat assembly. Hardened and custom-length versions remain within the same locating-pin family.

Material options

Bearing steel · Alloy steel · Stainless steel

The final grade and treatment are confirmed after reviewing your drawing and operating conditions.

Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.

Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

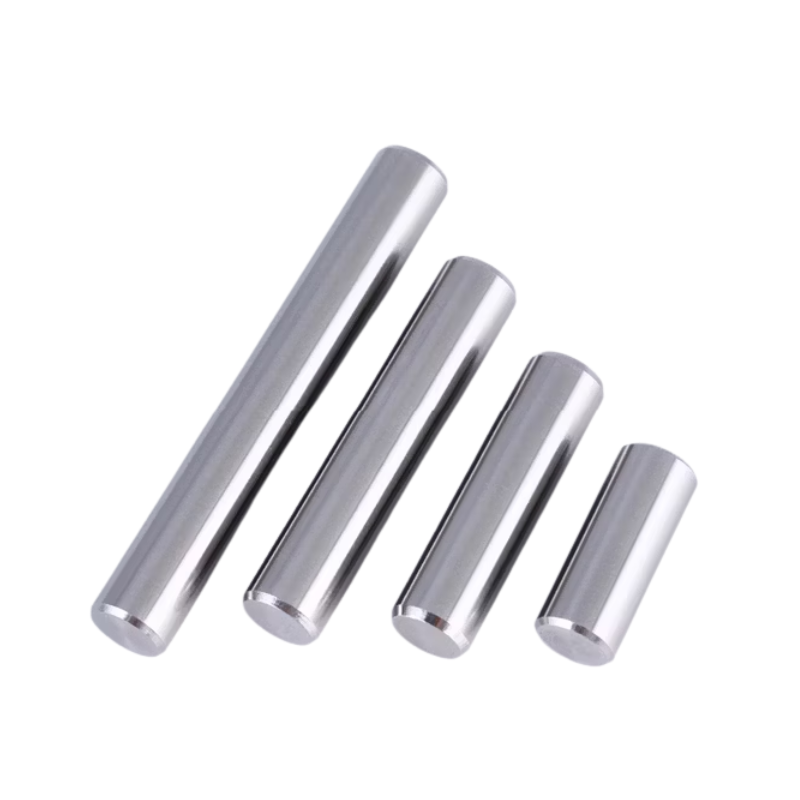

A ground diameter fits locating holes for repeatable assembly datums.

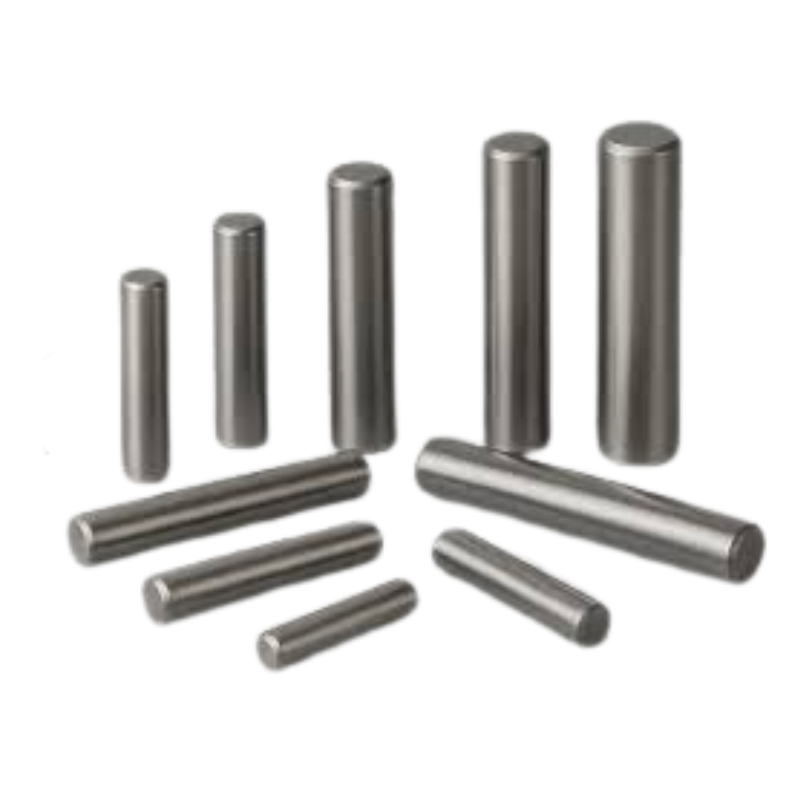

Select hardening for wear duty, with hardness matched to material and mating holes.

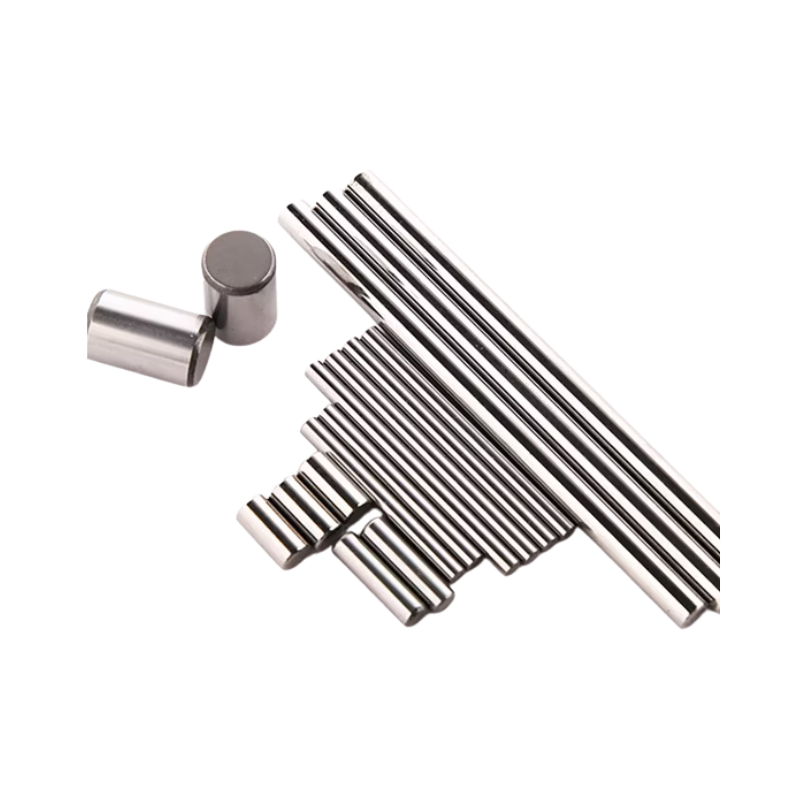

Define chamfers, rounded ends and custom lengths for insertion and assembly.

Dowel pins give repeatable location in molds, dies, fixtures and machinery—the pin and hole locate; bolts and screws clamp.

Typical industries

Dowel pins vs fasteners?

Pins locate for repeat assembly; clamping comes from bolts/screws. Define fit and fastening separately.
