Designs and configurations
Flanged Guide Bushings
A flange provides an axial locating face for the guide bushing. The mounting face and bore must share the specified alignment.
Designs and configurations ↓Material options
Bearing steel · Tool steel
The final grade and treatment are confirmed after reviewing your drawing and operating conditions.
Dimensions, tolerances, hardness, quantity and delivery are confirmed in the quotation. No fixed stock specification is implied.
Designs and configurations
Select function and geometry, then confirm material, fits and treatment. Options may be combined; dimensions follow the agreed drawing.

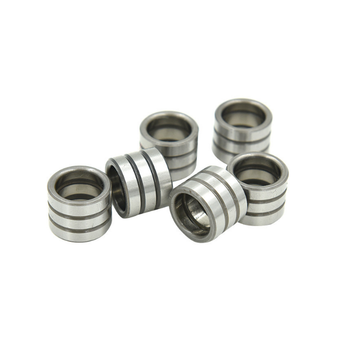

Flange-mounted bushing
A flange accommodates screws or clamps; check mounting-hole interference.
Send inquiry now →

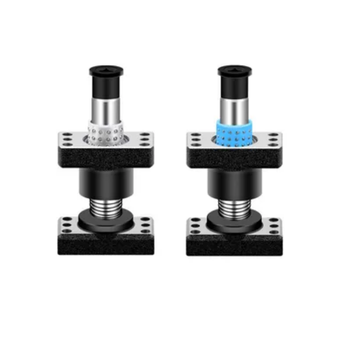

Custom bore and lubrication
Lay out fit sections and grooves for the guiding travel.
Send inquiry now →Materials and treatment options

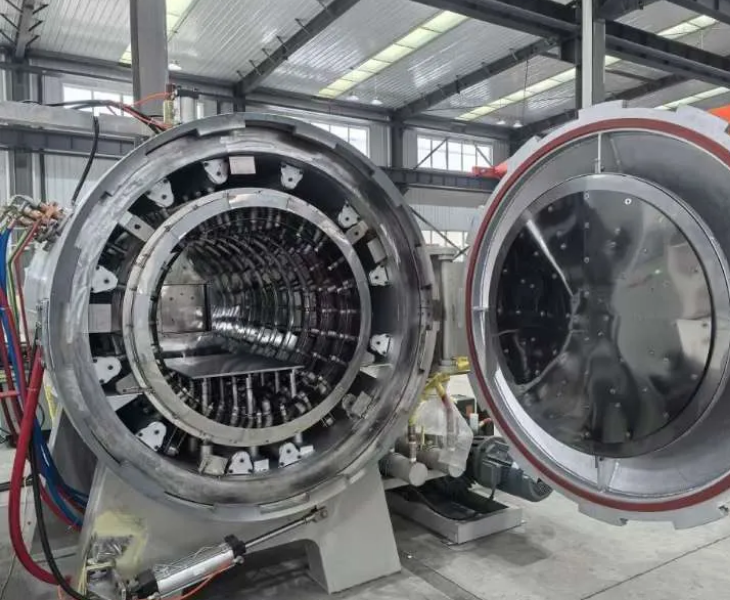

Hardness and wear depend on material and heat treatment—vacuum processing targets about HRC 58–62 with minimal decarburization and distortion; optional cryogenic treatment improves stability and life.
Send inquiry now →
Precision machining and surface finish
Posts and bores are centerless- and internal-ground for concentricity ≤0.005 mm and Ra ≤0.2 μm-class finishes—smoother motion and less galling risk.
Send inquiry now →
Family-specific questions

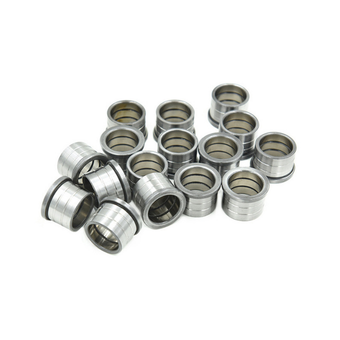

Flange vs shoulder bushings?
Shouldered types seat on the plate; flanged types bolt/clamp. Both locate axially; bore guidance requirements remain.
